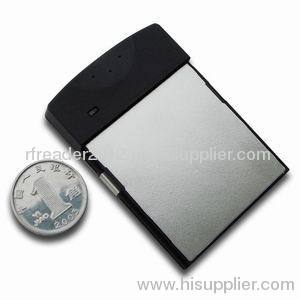

Compact Flash RFID Reader with Various Software Compatibilities and Compact Flash Type A/B D-Think_901A-2 manufacturer from China Guangzhou D-Think Technologies Inc

Product Detail

Model No.: D-Think_901A-2

Powers:
5mA (typical) standby
90mA (typical) field scanning
5V (typical) operation

Powers:
- 5mA (typical) standby
- 90mA (typical) field scanning
- 5V (typical) operation
Complies with ISO 14443A protocol
- Supports Mifare 1k S50, 1k S70, ultra-light and ultra-light C
- Supports Mifare Desfire and Pro
- Supports FM11RF08, BL75R06 and ISSI4439
Complies with ISO 14443B protocol
- Supports AT88RF020/SR176/SRIX4K/SLE66CL160S and CPU cards in line with ISO 14443B protocol
- Supports reading ID number of second generation ID card
Complies with ISO 15693 protocol:
- Supports TI RFID tag-IT HF
- Supports NXP I.CODE SLI and other chips in line with ISO 15693 protocol
- Supports reading and writing
- Supports secondary development
Physical interface: compact flash type A/B
RFID antenna: integration design of reader and antenna
Frequency: 13.56MHz (HF: high frequency)
Operating system: Microsoft Windows 2000/XP/Vista/7/CE, Windows Mobile5.0/6.0/6.5
Read/write distance:
- ISO 14443A: 6cm (depending on antenna structure and user environment)
- ISO 14443B: 3cm (depending on antenna structure and user environment)
- ISO 15693: 8cn (depending on antenna structure and user environment)
With LED
Development environment: C++, VC, Java, C #, Vb, Vb.net and Delphi
Applications:
- Power/pipeline patrol
- Handheld consumer
- E-ticket
- Authentication
Dimension: 42.6 x 59.5 x 7.5mm
Weight: about 16.5g
