UHF RFID Reader with Frequency Ranging from 840 to 960MHz and 0 to 10cm Reading Distance manufacturer from China Guangzhou D-Think Technologies Inc

Product Detail

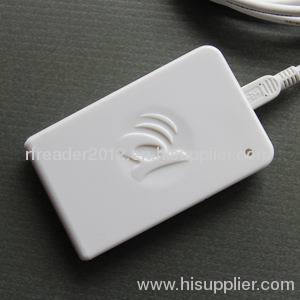

UHF RFID Reader with Frequency Ranging from 840 to 960MHz and 0 to 10cm Reading Distance

Frequency: 840 to 960MHz (UHF)
ESD: 4kV
Supports (EPC generation 2) full protocol
Compatibility indirect mode
Supports reading and writing
Supports secondary development
Master-slave mode (customizable otherwise)
Physical interface:
- USB 2.0 USB cable 1.8m long, shielded and magnetic
- RS 232 cable 1.5m long
RFID antenna:
- Built-in QG-N01-A (902 to 928MHz)
- Built-in QG-N01-B (865 to 868MHz)
- Frequency width: 3MHz
- VSWR: ≤1.8
- Gain: 2.15dBi
- Maximum power: 1W
- Input impedance: 50Ω
- Interface format: IPEX head
- Dimension: 35.7 x 6.8 x 0.6mm
Operating system: Microsoft Windows 2000/XP/Vista/WIN 7/WIN CE Linux
Read/write distance: 0 to 10cm (depending on the antenna structure and the used environment)
3 colored LEDs
Built-in buzzer
Development environment: -C++, VC, Java, C#, Vb, Vb.net and Delphi
Working environment:
- Operating temperature: -20 to 70°C
- Storage temperature: -40 to 85°C
Applications:
- RFID tag data write/input
- Data capture
- E-Mark certificate
- RFID printer
Dimension: 100 x 60 x 12mm
Weight: about 90g
