Model No.: D-Think_SL030-2

HF RFID Module, Developed Based on NXP's Low Power Transponder ICs, Measures 38 x 38mm

Mini Mifare read/write module
Developed based on NXP's low power transponder ICs
Supports Ultralight, Mifare Mini, Mifare 1k, Mifare 4k and FM11RF08
Does auto real-time detecting tag which moves into or out of detective range and reports through one output pin's logic level

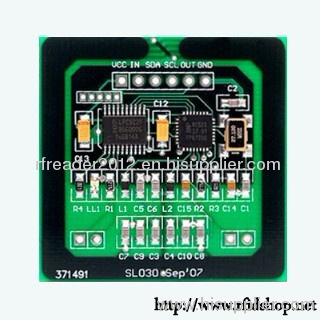

In addition, it integrates all necessary components and antenna in one PCB
In view of its maximum working and sleep current are 45mA and 10uA respectively
It is preferential for applications which require low power cost
Features:
- Interface: IIC for SL030 and UART for SL031
- Frequency: 13.56MHz
- Interface: I2C/UART
- Supply voltages: 2.5 to 3.6V DC
- Dimension: 38 x 38mm
